Product Description
Overview & Specifications:
The digital multimeter is a reliable and high-performing device powered by batteries.
It employs an LCD display for clear readings. The unit symbol display, backlight, and overload protection feature make operation straightforward.
The Multimeter is capable of measuring DC voltage, AC voltage, DC current, AC current, resistance, capacitance, inductance, temperature, frequency, as well as conducting diode, triode, and continuity tests. The instrument utilizes a dual-integral A/D converter as a focal point, proving to be an exceptional tool.
SPECIAL FEATURES
Maximum Display: 1999 (3 1/2) digit automatic polarity display
Low voltage indication: Battery symbol display
Automatic shutoff: No activity for 15 minutes
Sampling rate: 3 times per second
ACV frequency response: (40-1000)Hz
Over range alert: Display OL at maximum position
Operating environment: (0-40)C, relative humidity<80%
Storage conditions: (-20~60)C, relative humidity<85%
Power source: 9V battery
Dimensions: 167*81*43mm
Weight: Approximately 167g
Dedicated capacitor and transistor ports
To activate (ensure the switch is in the OFF position), turn the function dial to the closest capacitor range F (narrower ranges yield greater accuracy). Consult the diagram to connect to the designated port labeled CX for capacitance measurement.
Large display and high-definition
This adaptable multimeter uses large-screen high-definition digital technology, delivering sharp digital readings without ghosting. Its maximum count can go up to 1999, meeting users’ demands for precision.
Separate capacitor port
This multifunctional digital multimeter comes with a two-color intelligent auto-backlight feature that automatically shuts off when not in use to prevent battery drain. It is also equipped with a built-in flashlight for brightness, an NCV non-contact measurement port with indicator light, and a capacitance range of 100,000 UF.
Shock-resistant and Drop-proof
The multifaceted multimeter is crafted with anti-shock and drop-proof features, providing multiple levels of protection. Its premium design includes a dual-protection system for enhanced safety, allowing for worry-free operation and ensuring accurate measurements consistently.

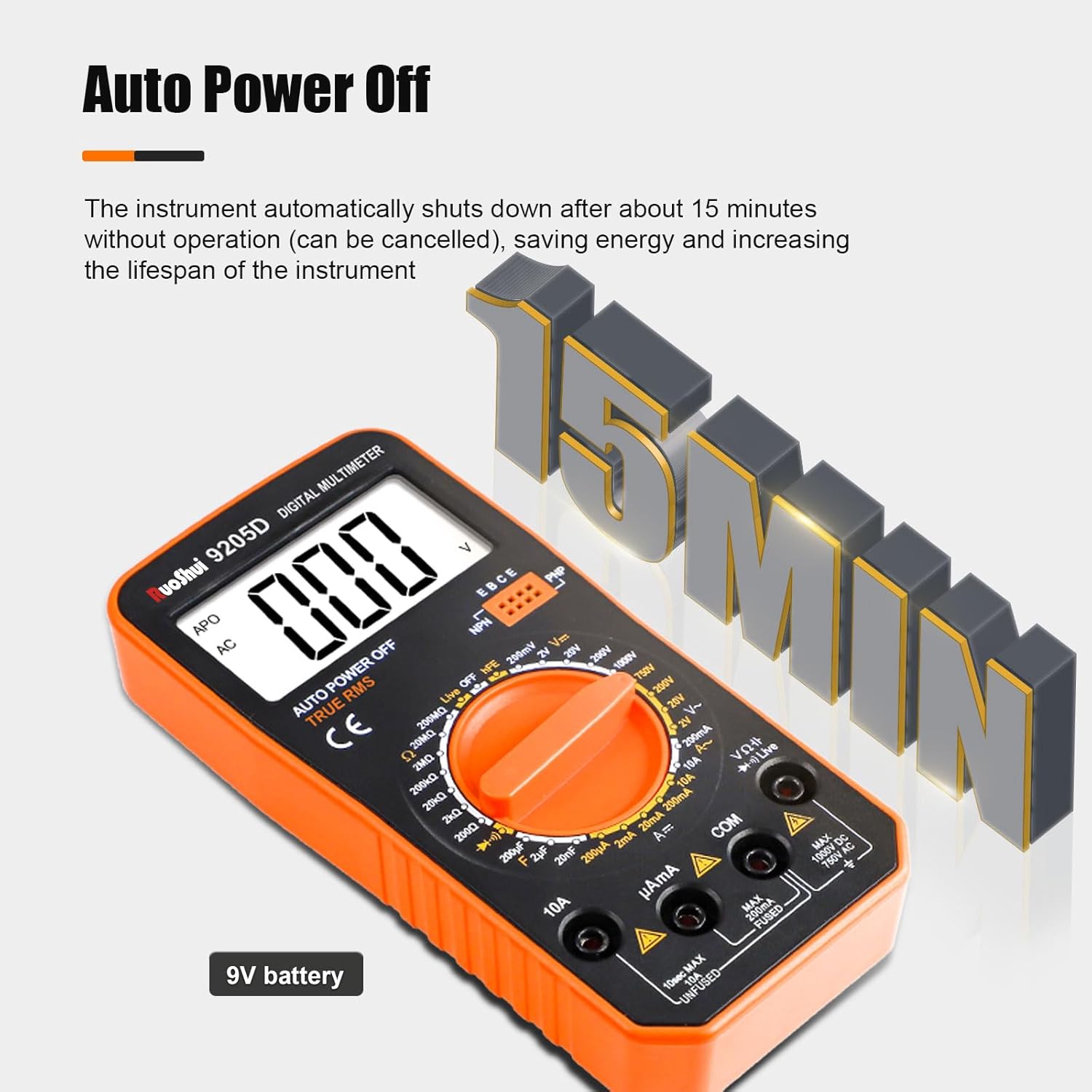

Automatic power off
The multimeter powers off automatically after about 15 minutes of inactivity, aiding in energy conservation.
and prolonging the duration of the apparatus.
Twin safety tubes.
This device incorporates high-quality electronic components to guarantee accurate measurements.
Packaging Dimensions : 6.93 x 4.72 x 2.05 inches; 5.89 ounces
Item model identifier : 9205D
Date Initially Available : March 29, 2024
Maker : ruoshui
ASIN : B0CZDRGGYT
Nation of Origin : China
1. 𝘼𝙘𝙘𝙪𝙧𝙖𝙩𝙚 𝙈𝙚𝙖𝙨𝙪𝙧𝙚𝙢𝙚𝙣𝙩𝙨: The Digital Multimeter facilitates accurate DC/AC current and voltage evaluations, resistance, capacitance, and more. Ideal for electricians, technicians, or DIY fans requiring trustworthy readings.
2. 𝙀𝙖𝙨𝙮 𝙩𝙤 𝙐𝙨𝙚: Equipped with a large 0-1999 count digital display and user-friendly features including overload indication, low voltage alert, and manual range selection, this multimeter simplifies circuit testing.
3. 𝙑𝙚𝙧𝙨𝙖𝙩𝙞𝙡𝙚 𝙁𝙪𝙣𝙘𝙩𝙞𝙤𝙣𝙖𝙡𝙞𝙩𝙮: Capable of measuring diodes, transistors, and continuity, this multimeter serves as a thorough tool for a diverse array of electrical testing requirements. Its dual insulation structure guarantees safety during operation.
4. 𝘿𝙪𝙧𝙖𝙗𝙡𝙚 𝘾𝙤𝙣𝙨𝙩𝙧𝙪𝙘𝙩𝙞𝙤𝙣: Constructed with premium materials and a dual-integral A/D converter, the multimeter is fashioned for enduring performance. The automatic shut-off function helps save battery life, making it perfect for portable usage.
5. 𝙍𝙚𝙡𝙞𝙖𝙗𝙡𝙚 𝙋𝙚𝙧𝙛𝙤𝙧𝙢𝙖𝙣𝙘𝙚: From temperature and frequency assessments to the ACV frequency response and low voltage indicators, this multimeter delivers dependable outcomes in varied work settings. Supported by a 9V battery, it stands as a trustworthy ally for any electrical endeavor.
