Product Description
FEATURE
This connector for wire conductors is simple to utilize and does not need any specialized tools or training for installation.
Constructed with robust and heat-resistant materials to guarantee enduring functionality.
Compatible with a diverse array of wire sizes and uses, encompassing automotive, industrial, and home wiring.
Delivers a secure and vibration-resistant connection to avert incidental disconnections or electrical issues.
The connector serves as a universal 3-way connector for flexible wires ranging from 0.08 to 2.5 mm² / 28-14AWG and solid wires spanning 0.08 to 4 mm²/ 28-12AWG

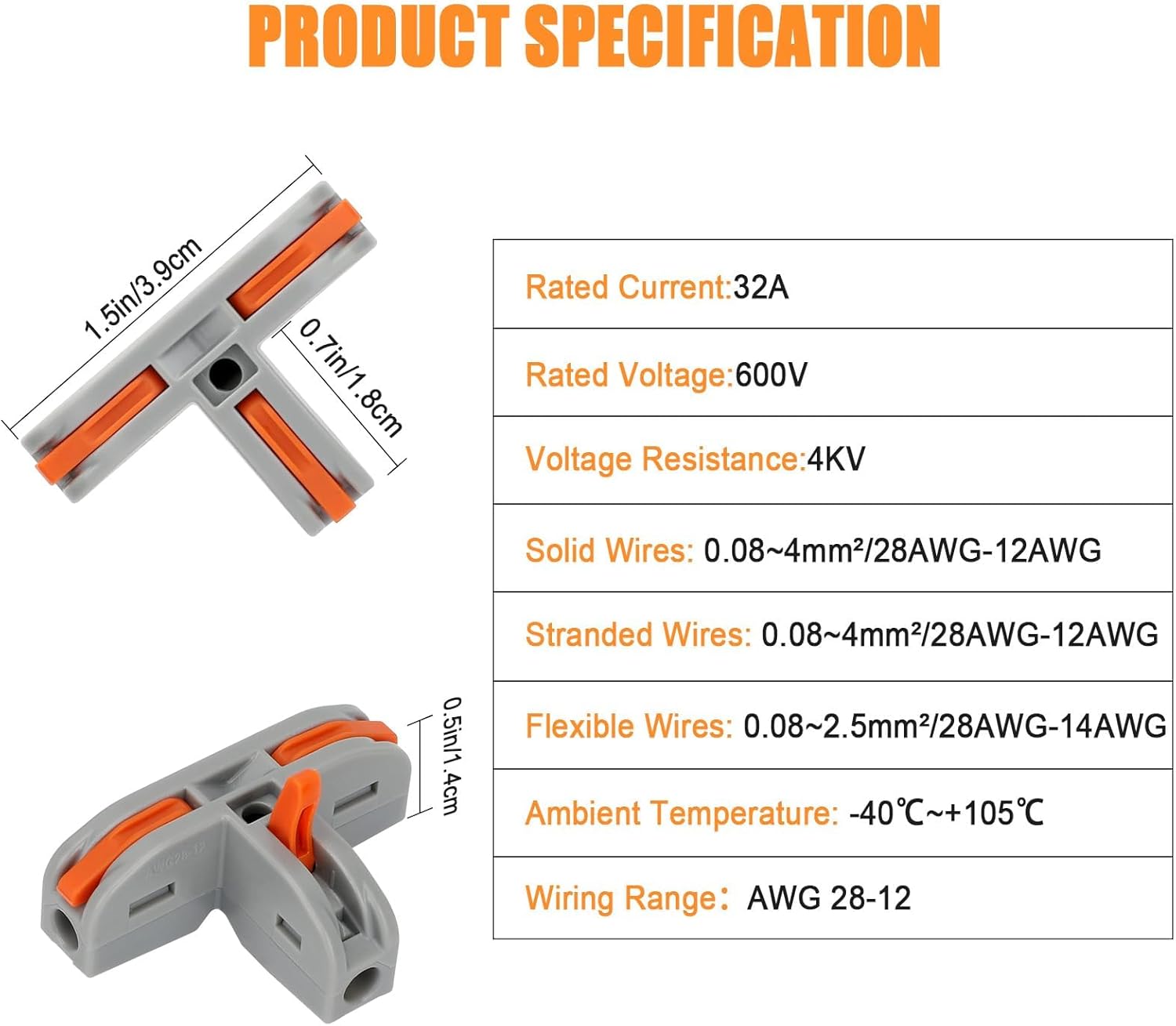

SPECIFICATION Rated Current:32A Rated Voltage:600V Voltage Resistance:4KV Solid Wires: 0.08~4mm²/28AWG-12AWG Stranded Wires: 0.08~4mm²/28AWG-12AWG Flexible Wires: 0.08~2.5mm²/28AWG-14AWG Ambient Temperature: -40℃~+105℃ Wiring Range：AWG 28-12
AMBIENT TEMPERATURE
This wire conductor connector is designed to resist heat, providing dependable electrical connections in elevated temperature settings. It ensures steady and secure connections in extreme heat conditions.
SIMPLE TO USE
Cables can be attached manually and connectors without requiring any tools. Position the handle plate at a 90° angle, then strip the wire roughly 10mm, and lower the handle to finalize the wiring.
TEST HOLE
Each connector features test holes on its surface, allowing electrical testing to be conducted without the need to remove the tape, making the process straightforward and intuitive.
Add to Cart
Add to Cart
Add to Cart
Consumer Feedback
3.8 out of 5 stars 9
4.4 out of 5 stars 18
4.4 out of 5 stars 43
3.4 out of 5 stars 7
4.8 out of 5 stars 6
—
Price
— no data $14.68$14.68 $17.99$17.99 $15.99$15.99
— no data
— no data
Quantity
50PCS 50PCS 50PCS 24PCS 5PCS 2PCS
Color
Blue, Grey Blue Blue Black, Clear Black Black
Waterproof
✓
✓
✓
✓
✓
✓
Simple to Use
✓
✓
✓
✓
✓
✓
Safe Material: The 3-port rapid wire connector is crafted from insulating substances, which endure corrosion, aging, and high temperatures.
Easy to Operate: No tools required. Align the handle plate at 90°, strip the wire around 10mm, and push down the handle for completion of wiring.
High Efficiency: The lever wire connector can seamlessly join the wires without harming the core conductors, eliminating the need for laborious soldering and taping.
Universal Compatibility: This lever wire connector set accommodates 0.08-4mm²/AWG 28-12 solid, stranded, and flexible copper wires, commonly utilized for ceiling fans, outlets, switches, vehicles, speakers, etc.
Functional & Reusable: Every junction possesses independent spring, ensuring different wires are sorted individually. The testing port at the rear can verify if the wire is live.
Customers express
Consumers find these wire connectors simple to operate and practical, with one individual mentioning they function effectively for model railroad links. They value the connection approach, with one commenter stating they’re excellent for connecting three wires, and another emphasizing their capability in maintaining an organized wiring setup. Buyers regard them as a good investment for the price.
